Campaign offer (until 30.09.2023) - Order TS-100C Smart Thermo-Shaker and receive 1 block free of charge.

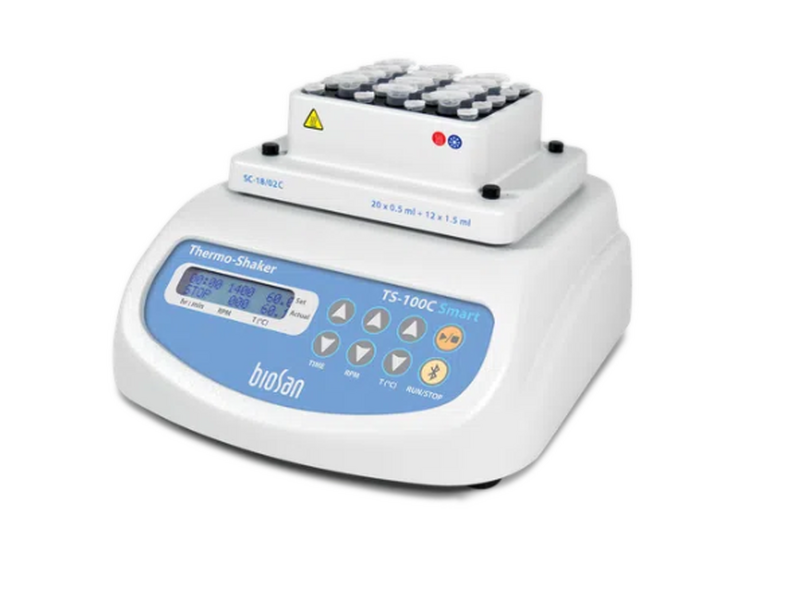

Thermo–Shaker TS-100C Smart provides intensive mixing and temperature control of samples in microtest tubes or PCR plate. This model of Thermo–Shaker differs from TS-100 with a possibility of cooling samples down to +4°C and with control up to 7 units from PC via Bluetooth® technology. Features of TS-100C Smart meet the highest expectations of users according to many parameters:
- Fast reaching of specified mixing speed and maintenance of equal amplitude of rotation throughout the Thermo–Shaker block;
- Stability of maintaining the preset temperature in a wide range throughout the Thermo–Shaker’s block surface;
- LCD display indicates preset and current values of temperature, speed and time of operation;
- Quiet motor operation, compact size, prolonged service life.
Functions of heating and mixing can be performed both simultaneously and independently.
There are five heating and cooling blocks available, including a block with a plastic lid for the PCR-plates. All blocks are mutually interchangeable and can be easily installed on Thermo–Shaker.
The instrument is applicable in:
- Genetic analysis — in extraction of DNA, RNA and further sample preparation;
- Biochemical study of enzymatic reactions and processes;
- Extraction of metabolites from cellular material.
Temperature Calibration Function
With the help of the temperature calibration function the user can calibrate the unit approx. ±6% of the selected temperature to compensate differences in the thermal behaviour of tubes from different manufacturers.
TS-100C Smart software features
- Rotation speed
- Temperature
- Time
- Sound signal
- Creating Profiling programs using controlled parameters
- Visualization of temperature vs time and speed vs time graphs
- Data export to Excel and CSV formats
- Error messages/Fault diagnostics
Specification
| Temperature setting range | +4°C ... +100°C |
|---|
| Temperature control range | 15°C below ambient ... +100°C |
|---|
| Temperature setting resolution | 0.1°C |
|---|
| Temperature stability | ±0.1°C |
|---|
| Temperature accuracy at +37°C | ±0.5°C |
|---|
| Average heating speed from +25°C to +100°C | 5°C/min |
|---|
| Average cooling speed from +100°C to +25°C | 5°C/min |
|---|
| Average cooling speed from +25°C to +4°C | 1.8°C/min |
|---|
| Temperature uniformity over the block at +4°C | ±0.6°C |
|---|
| Temperature uniformity over the block at +37°C | ±0.1°C |
|---|
| Temperature uniformity over the block at +100°C | ±0.3°C |
|---|
| Temperature calibration coefficient range | 0.936...1.063 (± 0.063) |
|---|
| Speed control range | 250–1400 rpm |
|---|
| Digital time setting | 1 min–96 hrs / non–stop (increment 1 min) |
|---|
| Timer sound signal | + |
|---|
| Orbit | 2 mm |
|---|
| Display | LCD, 16 x 2 signs |
|---|
| Microprocessor controlled temperature, mixing speed and operation time | + |
|---|
| Maximum continuous operation time | 168 h |
|---|
| PC system requirements | Intel/AMD Processor, 1 GB RAM, Windows Vista/7/8/8.1/10/11, USB, Bluetooth |
|---|
| Overall dimensions (W×D×H) | 220x240x90 mm |
|---|
| Weight | 3.7 kg |
|---|
| Input current/power consumption | 12 V, 4.9 A / 60 W |
|---|
| External power supply | Input AC 100–240 V; 50/60 Hz; Output DC 12 V |
|---|
