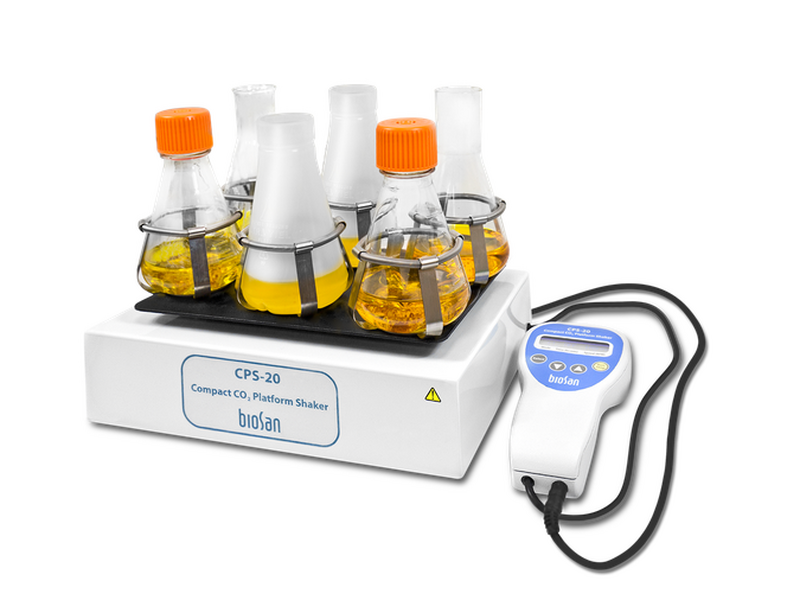

CO2 Shaker CPS-20 provides regulated orbital motion of the platform and is designed for use in Biosan’s S-Bt CO2 Incubator. CPS-20 is specifically designed for use in harsh environments such as CO2 and humidity and provides reproducible results for cell culture growth. A choice of 5 interchangeable platforms provide the possibility of performing various procedures and techniques in various cultivation vessels.
CPS-20 incorporates a brushless motor with a guaranteed service life up to 35,000 hours. The unit is equipped with a triple eccentric mechanism for platform motion that provides supreme balancing characteristics, superior reliability and quiet operation. The specially designed remote controller protect the electronics from a CO2 incubator environment, as well as, the remote control minimizes interference with the incubator environment and the ongoing experiment.
Without platform.
To be used with: UP-12 universal platform, Bio PP-4 flat plaform with non-slip silicone mat, P-12/100, P-6/250 platform with clamps, P-16/88 platform for tubes, HB-200 holding bar, RS2 rack, S-Bt Smart Biotherm incubator.
| Speed control range | 50 - 250* RPM (increment 10 rpm) *max. speed depends on the load and vessels' shape |
|---|
| Digital time setting | 1 min–96 hrs / non–stop |
|---|
| Digital speed control | + |
|---|
| Maximum continuous operation time | 168 hr |
|---|
| Orbit | 20 mm |
|---|
| Maximum load | 3 kg |
|---|
| Overall dimensions (W×D×H) | 255x255x100 mm |
|---|
| Weight | 3.4 kg |
|---|
| Input current/power consumption | 12 V, 470 mA / 5.7 W |
|---|
| External power supply | Input AC 100–240 V; 50/60 Hz; Output DC 12 V |
|---|
